2" Crayford Focusers for Refractors

These solid GSO Crayford focusers can transform your scope into
a dream machine! The factory focuser is the weakest link in most
imported scopes. Sticky grease, rough racks, shims and springs
for crude adjustment, and bad feel are common.

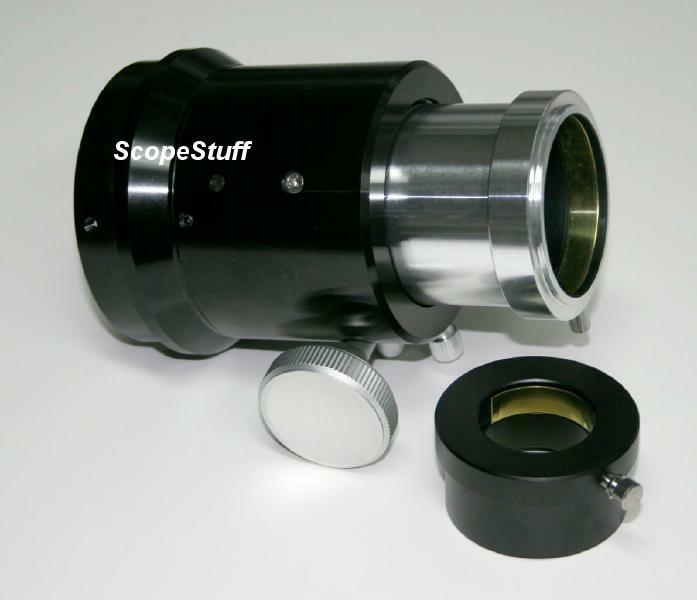

Bolt on our Crayford focuser and enjoy smooth operation, great
feel and precise adjustability. The draw tube and unified
compression ring visual back are machined from solid aluminum,
clear anodized, and ride on precision bearings and a roller shaft.
No grease or plastic glides! The 1/8" thick-wall drawtube is
internally baffled and anti-reflection blackened.

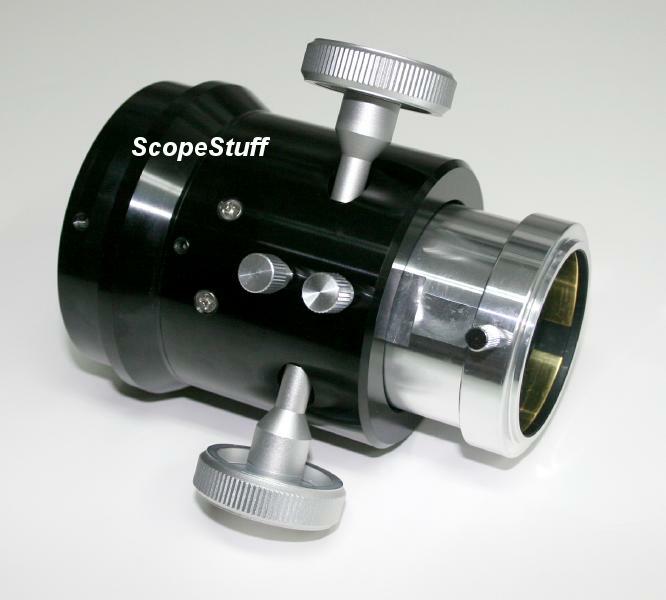

The bodies are black anodized machined aluminum and have tension
and lock controls that adjust the focuser anywhere from a very
light feel to fully locked. Whether it's a light eyepiece or a heavy
camera, control is smooth and precise, with no image shift,
backlash, stickyness or bumpy feel.

The two speed versions have a 10:1 ratio reduction knob for
super fine focus control!

The Refractor Crayford Focusers have 80mm travel. Weighs 1.5 lbs.
Minimum in-focus length from scope tube to 2" barrel is 3.6".
Flanges are drilled and tapped for three M4 screws.

#FRM2 flange outside diameter is 86mm or 3.4" to fit 3.5" OD tubes.
#FRM3 flange is 96mm or 3.8".
#FRM4 flange if 112mm or 4.41".

#FRM2 Fits Orion ST80, AT-1010 and NightHawks perfectly!
#FRM3 fits Orion ED80 and ED100, 102mm from Orion, Skywatcher,
Celestron, Konus, etc

Please note, due to the oddly long drawtubes on the Meade AR5 and
AR6 refractor factory focusers, an extension is often required with
replacement focusers in order to achieve focus. Our #ET35 extension
is a good choice for most applications.

#RDPC is the finder mounting shoe for Orion/Synta style finder
bases, mounts on the Refractor Crayford Focuser in existing holes,
no drilling. Fits on left or right side. Aluminum base with stainless
steel hardware.

Adapter rings are available for 3.8", 4.4" and 5.4" ID tubes for
Synta Refractors (Skywatcher, Celestron, Orion, Konus, Etc.),
Meade AR5 and AR6 and Antares 1208, 12012, Bresser Messier
AR-152L/1200. Adapter rings accept a 86.6mm focuser flange.
With stainless steel hardware.


Motorized versions are Here!

Click on images to enlarge:


$000.00 - #FRM2 - Currently unavailable - 2" Crayford 2 Speed Focuser For Refractors (86mm), With 1.25" Adapter (Orion ST80, AT-1010, NightHawks)
$000.00 - #FRM3 - Currently unavailable - 2" Crayford 2 Speed Focuser For Refractors (96mm or 3.8"), With 1.25" Adapter (ED80, ED100, 102mm Skywatcher, Celestron, Orion, Konus, etc)
$000.00 - #FRM4 - Currently unavailable - 2" Crayford 2 Speed Focuser For Refractors (112mm or 4.41"), With 1.25" Adapter
$41.00 - #FRC4 - Adaptor Ring for Crayford Refractor Focuser on 3.8" ID Tubes (ED80, ED100, 102mm Skywatcher, Celestron, Orion, Konus, etc)
$44.00 - #FRC5 - Adaptor Ring for Crayford Refractor Focuser on 4.4" ID Tubes (120mm Skywatcher, Celestron, Orion, Konus, etc)
$58.00 - #FRC6 - Adaptor Ring for Crayford Refractor Focuser on 5.4" ID Tubes - Low Profile (150mm Skywatcher, Celestron, Orion, Konus, etc)
$68.00 - #FRC7 - Adaptor Ring for Crayford Refractor Focuser on 5.125" OD Tubes (Meade AR5, Antares 1208, 12012, etc.)
$82.00 - #FRC8 - Adaptor Ring for Crayford Refractor Focuser on 6.175" OD Tubes (Meade AR6, Antares 1529, Bresser Messier AR-152L/1200, etc.)

$34.00 - #FFKF - Fine Focus Knob for GSO Crayford 10:1 Knob - Information Here
$24.00 - #RDPC - Orion/Synta Style Finder Mounting Shoe for #FRC2 & #FRM2 Crayford Focusers


Prices include shipping in the USA!

Ordering Information




Click on images to enlarge

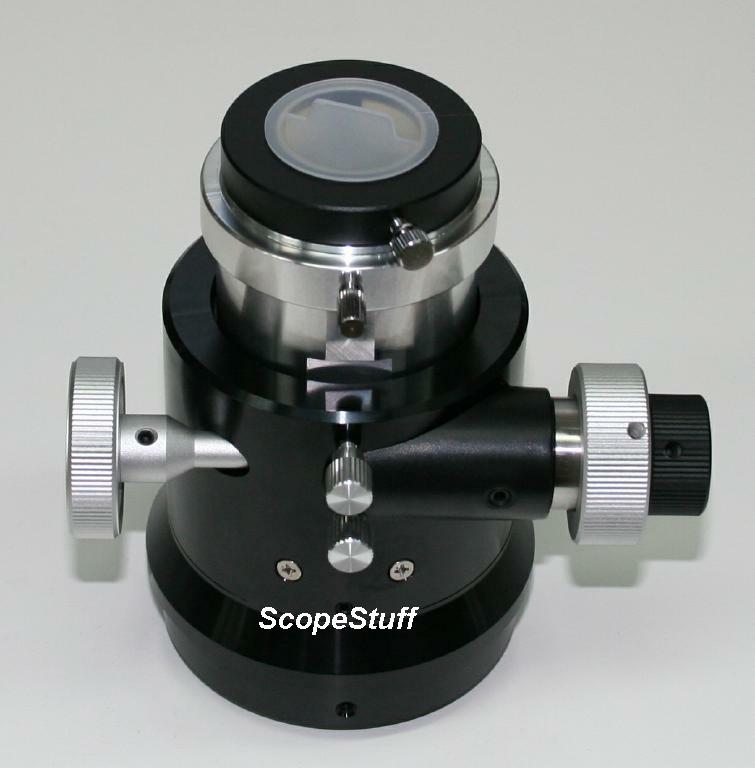

#FRC2 Focusers on 3.8", 4.4" and 5.4" ID tube adapters


#RDPC Orion/Synta Style Mounting Shoe



#FFKF Large diameter knob for 10:1 Crayford knob:



Rick's NightHawk with #FRC2 replacing the stock focuser using
the three original screws. Perfect fit. Thanks Rick!

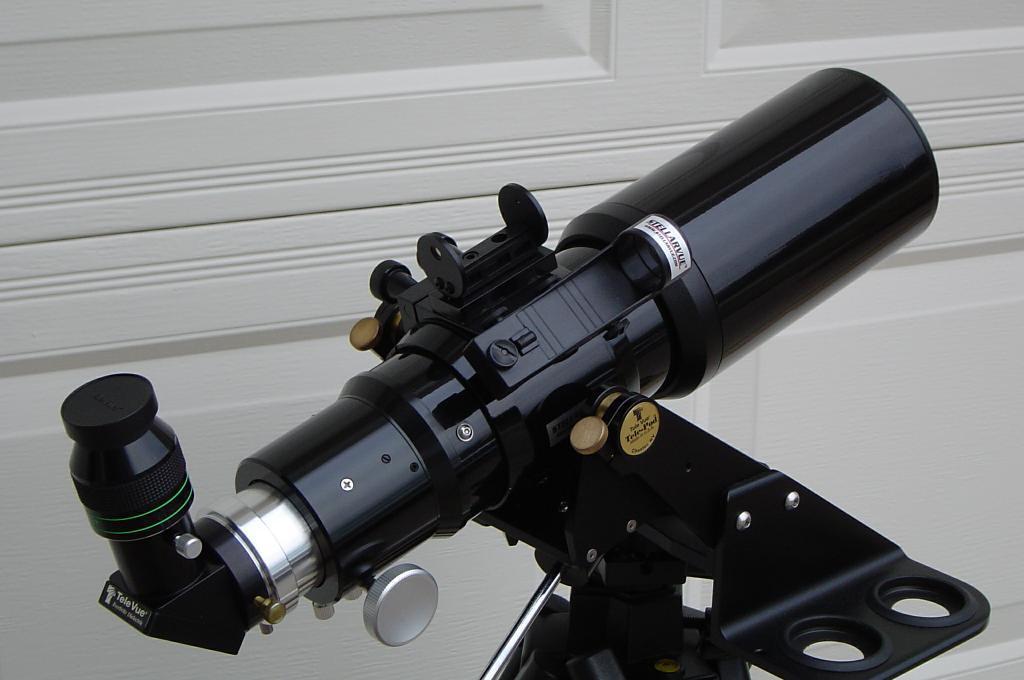

A Synta (Skywatcher, Orion, Celestron, etc.) ST-80 f5 with #FRM2
replacing the stock focuser. It simply bolts on using the three
original screws! Same minimum in-focus as the original focuser.
Both 1.25" and 2" diagonals have plenty of focus range.



Antares #1208 with #FRC2 and #FRC7 Adapter Ring


#FRM2 on a Meade DS2090 with 1mm plastic shim added. Thanks Tim!
