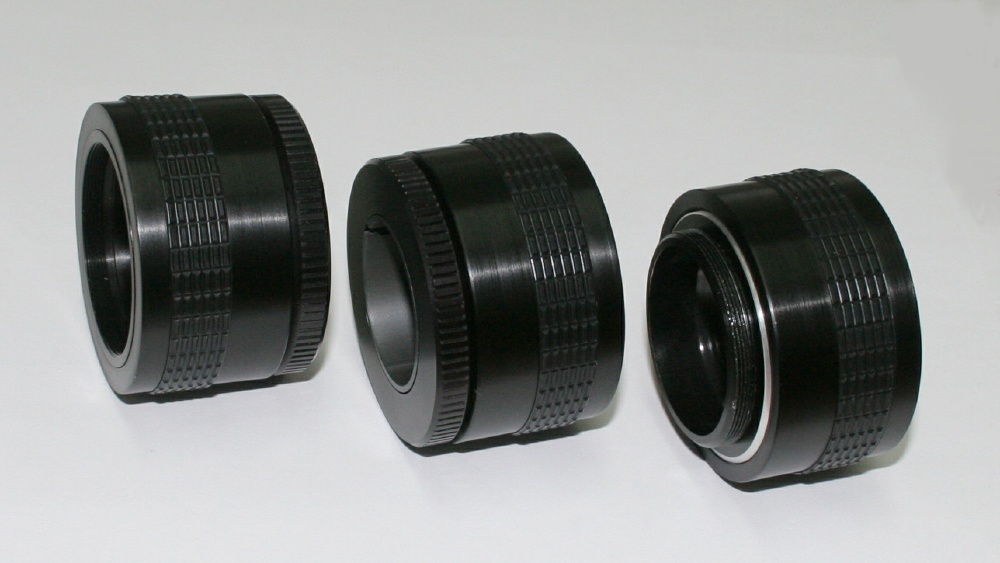

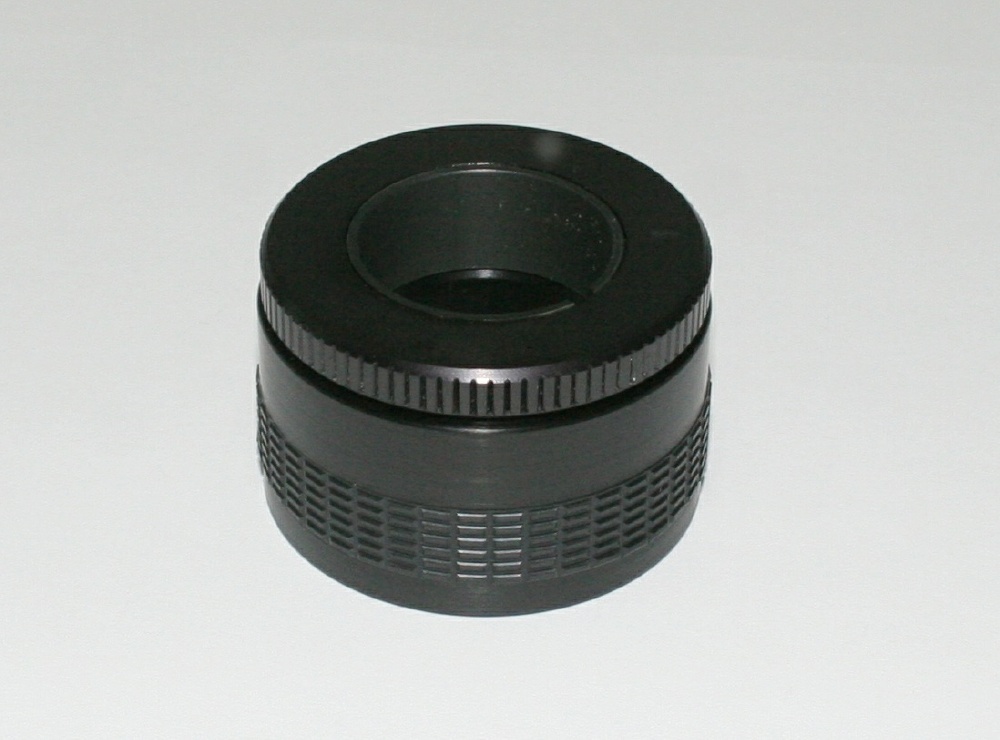

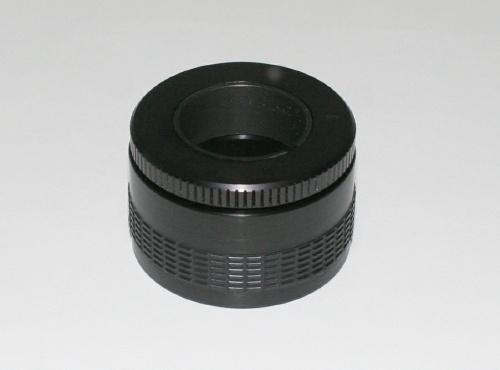

Helical Focuser with T-threads and 1.25" Eyepiece Holder

Our new helical focuser has features imagers love! Most important,
the camera or eyepiece doesn't spin when you focus. Male T-threads
on one end and Female T-threads on the other end to include the
focuser in imaging setups. For 1.25" eyepieces or cameras, a self-
centering twist-lock adapter fits on the male T-threads. Great for

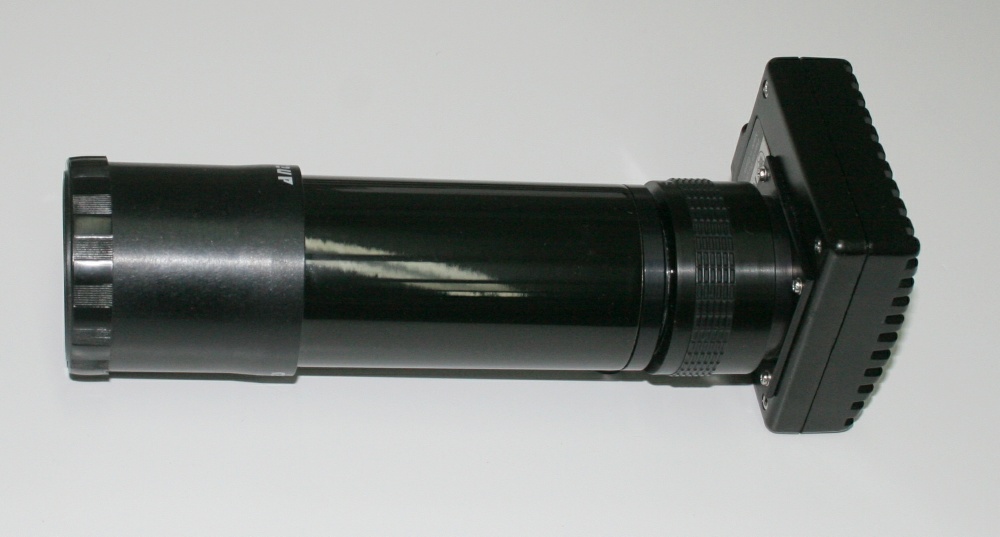

guide camera or eyepiece focusing with off-axis guiders.

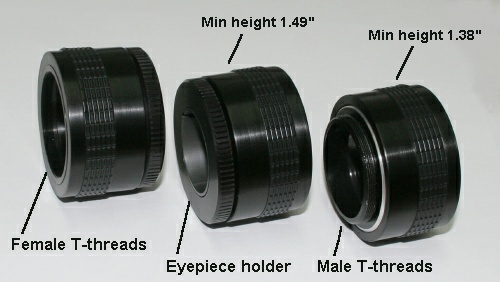

Overall height is less than 1.5" so it doesn't eat up precious focus
path distance. Minimum height with male T-threads exposed is 1.38".
Minimum height with the 1.25" twist-lock is 1.49". Focus travel is
0.2" in two turns of the rubber grip control ring.

Inside diameter is 1.25", overall outside diameter is 2.25". A locking
thumbscrew is included to aid in installation and removal.


Click images to enlarge:



$000.00 - #HFOC - Call for availability - Helical Focuser with T-threads and 1.25" Eyepiece Holder


Price includes shipping in the USA!
