Mounting Rail System for
Counterweights and Accessories

These universal rails are mounted on the top or bottom
of the OTA for holding counterweights, guide scopes,
cameras and other accessories. Black hardcoat anodized
aluminum rails are drilled and ready to mount on your
scope with the supplied stainless steel hardware. Allen
wrench included.

Accessories and counterweights attach to the rails with
cars that slide to any position on the rail and grip firmly
when tightened. The cars can be removed out the ends
of the rails for quick mounting and dismounting.

Cylindrical counterweights can be mounted on end or side
mounted. When side mounted, the weight can be centered
or mounted off axis for balancing in the 'third dimension.'
Counterweights can also be joined end to end. No-tools
hardware for all mounting possibilities is included in the
CWK2 Balance Kit.

The 1 lb Threaded Adjustable Counterweights are threaded
all the way through and can be adjusted up and down the
extension rod for balancing in the 'second dimension.'





MOUNTING RAILS --- Mounting hardware included
$00.00 - Currently Unavailable - #MR90 - Mounting Rail for LX90
$00.00 - #MR11 - Currently Unavailable - Mounting Rail for 7" LX200-GPS/ACF, LX200
$00.00 - #MR08 - Currently Unavailable - Mounting Rail for 8" LX200-GPS/ACF, LX200, LX10, LX50, 2080
$00.00 - #MR10 - Currently Unavailable - Mounting Rail for 10" LX200-GPS/ACF, LX200, LX10, LX50
$00.00 - #MR12 - Currently Unavailable - Mounting Rail for 12" LX200-GPS/ACF, LX200
$00.00 - #MR44 - Currently Unavailable - Mounting Rail for 14" LX200-GPS/ACF
$00.00 - #MRX1 - Currently Unavailable - Mounting Rail for 10" RCX400
$00.00 - #MRX2 - Currently Unavailable - Mounting Rail for 12" RCX400
$00.00 - #MRX4 - Currently Unavailable - Mounting Rail for 14" RCX400
$00.00 - #MR55 - Currently Unavailable - Mounting Rail for LXD55/LDX75 (mounts on top of rings spaced 24 cm)
$00.00 - #MRET - Currently Unavailable - Mounting Rail for ETX125 & 105 (mounts underneath)
$00.00 - #MRC8 - Currently Unavailable - Mounting Rail for Celestron C8 Family SCTs, with blocks - - Celestron 8" OTA Warning!
$00.00 - #MRC9 - Currently Unavailable - Mounting Rail for Celestron C9.25 SCTs, with blocks - - Celestron 9.25" OTA Warning!
$00.00 - #MR11 - Currently Unavailable - Mounting Rail for NexStar 11 GPS, CM1100, LX200 7"
$00.00 - #MR14 - Currently Unavailable - Mounting Rail for Celestron C14 family scopes
$00.00 - #MR90 - Currently Unavailable - Mounting Rail for Intes MK-67 (Same as LX90 rail)
$00.00 - #MRDN - Currently Unavailable - Mounting Rail 24" for Newts and Dobs, with mounting tape and hardware
$10.00 - #SFB1 - Mounting rail 4" - Extra universal base for Starfinder Mount, with mounting tape and hardware
$10.00 - #SFB1 - Mounting rail 4" - Extra universal base for Starfinder Mount, with mounting tape and hardware
$15.00 - #MR88 - Mounting Rail 8" long - Doesn't fit anything in particular
$11.00 - #MRSS - Mounting Rail Safety Stops, Package of Two - Details HERE




. . . . <== Hey! Click This When Ordering Kits!

COUNTERWEIGHTS
$89.00 - #CWK1 - Balance Kit 1:
- One mounting rail, two #CWA1 1 lb Pancake counterweights and all required hardware
$00.00 - #CWK2 - Currently Unavailable - Balance Kit 2:
- One mounting rail, two #CW10 1 lb Cylindrical counterweights and all required hardware
$00.00 - #CWK3 - Currently Unavailable - Balance Kit 3:
- One mounting rail, one 1 lb Cylindrical weight, one 1 lb Pancake weight, with hardware
$114.00 - #CWK12 - SCT Balance Kit 12
- One SCT mounting rail, two 2 lb Pancake counterweights and all required hardware
$35.00 - #CWK5 - 2D Balance Kit:
- One #CWA1 1 lb Pancake Counterweight, 5" extension rod with car and hardware
$00.00 - #CW10 - Currently Unavailable - 1 lb. Cylindrical Counterweight (1.5" x 2") with car and hardware
$28.00 - #CWA1 - 1 lb Pancake Counterweight (2.5" x 3/4") with car and hardware
$41.00 - #CWA2 - 2 lb Pancake Counterweight (2.5" dia x 1.5" long) with car and hardware
$11.00 - #MRER - 1/4-20 X 5" Extension Rod with car and hardware




MOUNTING KITS
$9.00 - #MRC4 - Package of two mounting cars - 1/4-20 threads, with clamp washers
$9.00 - #MRC6 - Package of two mounting cars - M6-1 threads, with clamp washers
$9.00 - #CWK1_KIT - Package of two mounting cars for 1/4-20 Counterweights
$9.00 - #MRW4 - Counterweight mounting hardware kit, as supplied with #CWK2 Balance Kit

$11.00 - #MRS4 - Scope Rings Mounting kit - 1/4-20 threads (for 2 rings, rings not included)
$11.00 - #MRS6 - Scope Rings Mounting kit - M6-1 threads (for 2 rings, rings not included)
$9.00 - #MRCM - 1/4-20 Camera Mounting Kit (Without Mounting Ring)
$14.00 - #TELM - Telrad Mounting Base with Rail Mounting Hardware for ScopeStuff Rails


Prices include shipping in the USA!


Specify telescope type and size when ordering!
- - Celestron 8" OTA Warning!
- - Celestron 9.25" OTA Warning!

Ordering Information



ST80 mounted with #CR35 cradle rings and #MRS6 M6 Scope
Rings Mounting kit. Piggyback kits are here


Alternate direct ring mounting with #MRS6 M6 Scope Rings Mounting kit

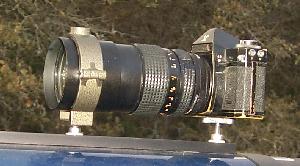

SLR mounted with the #MRCM 1/4-20 Camera Mounting Kit,
with the lens held in an optional cradle ring. The three point
centering option for is suggested for smaller diameter lenses.

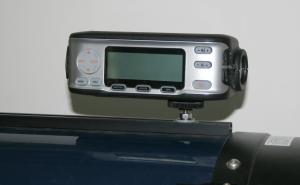

Sky Scout mounted with #MRCM




Mounting Rail Lengths:
#MRC8 13.00" - - Celestron 8" OTA Warning!
#MRC9 18.3" - - Celestron 9.25" OTA Warning!
#MR08 13.40"
#MR90 13.550"
#MR12 16.70"
#MR10 16.738"
#MR11 17.30"
#MR44 20.050"
#MR14 23.80"
#MRDN 24.00"



Celestron 8" OTA Warning is Here!
Celestron 9.25" OTA Warning is Here!

Telescope Balancing Kits are Here

Piggyback Scope Mounting Kits are Here

Scope Mounting Rings are Here

Example Piggyback Mountings
