Machined Aluminum Dovetail Saddle for Vixen/Synta/Orion
Type ~44mm Wide Dovetail Bars

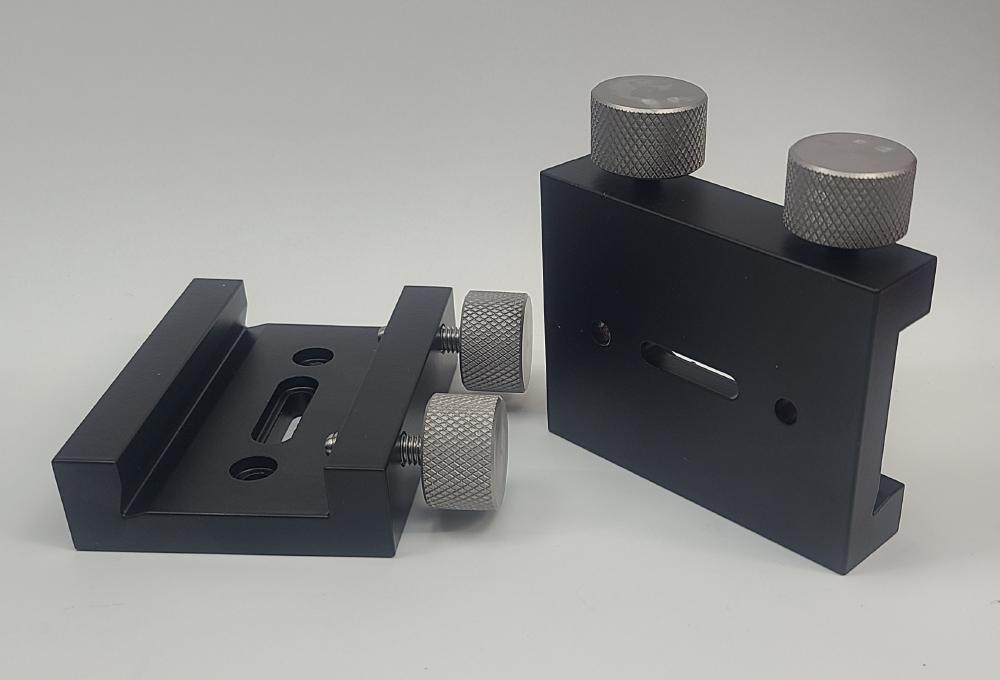

This solid machined aluminum dovetail saddle accepts Vixen/Synta/Orion
type dovetail bars with a base width of ~44mm. (up to 48mm)
4" long, 3" wide, 1" overall height, base is 0.4" thick. Two mounting holes
are 0.256" diameter, spaced 2.36" (60mm) and are counterbored to accept
M6 or 1/4-20 button head socket screws. Centered slot accepts screws
spaced up to 1". The slot and one hole accepts spacing 0.65" to 1.65"
Machined from 6062 aluminum, powder coated satin black, knurled clear
anodized aluminum clamp knobs with rounded tip stainless steel shafts.
Known by the State of California to cause choking if swallowed.
Button head socket mounting screws are included, specify M6 or 1/4-20
and the shaft length after ordering with email to sales@scopestuff.com
Default size is 1/4-20 x 1" if not specified.
Custom drilling/tapping is available upon request.
Click on images to enlarge:
Prices include shipping in the USA!
Ordering Information
Mating dovetail bars are Here
