Focuser Adapter for Synta Refractors

This compression ring visual back replaces the visual back on
Synta refractors that have 2" draw tubes, like the Orion 80 ED and
102, Vixen ED80SF, Skywatcher SW120ED and Black Diamond 120ED,
125 and 150mm refractors from Orion, Celestron, Skywatcher, TAL,
Antares and others. Fits drawtubes with male threads measuring 2.2"
outside dimension.

Instead of thumbscrews that scratch your diagonal, this unit uses
a brass compression ring to firmly grip the barrel. Lowest possible
profile for the most in-focus possible. Precision CNC machined for
square and centered alignment. Aluminum, black anodized, brass
compression band, nylon thumbscrews. Brass thumbscrews also

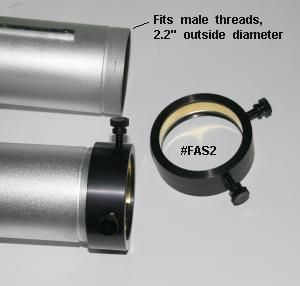

Please measure your drawtube male threads to verify they are 2.2"!

#FAS2 fits the Celestron Nexstar 102 GT refractor, or at least one of
them. Thanks for the confirmation John!

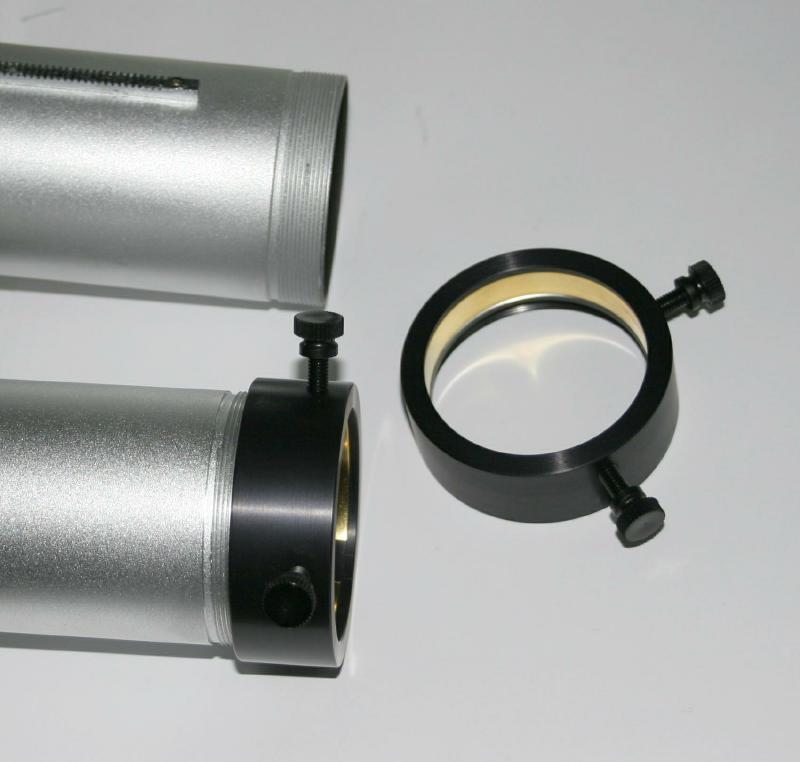

Click on image to enlarge:

$00.00 - Currently unavailable - #FAS2 - Focuser Adapter for Synta Refractors
$4.50 - SK2I10x34BR - Optional 10-32 x 3/4" Brass Thumbscrews, Package of Two Screws
$3.50 - SK2I10x34SS - Optional 10-32 x 3/4" Stainless Steel Thumbscrews, Package of Two Screws

Prices include shipping in the USA! ($10 minimum order)
