Orion/Synta Type Finder Mounting Shoes for 1/4-20 and M6 Mounting

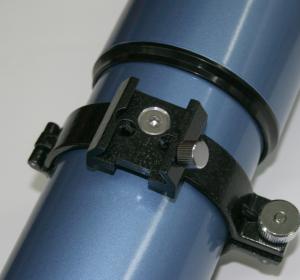

This finder shoe attaches to a flat surface with a single screw.
Great for mounting finders on top of rings, etc. While a single screw
mounting is not ideal, it works well when the supplied stainless steel
screw is tightened firmly. The bottom surface between the "legs" is
flat, about 1.3" wide and 1.5" long. Comes with 1/4-20x1/2" and
1/4-20x3/4" button-socket screws.
The center hole is not threaded, it is a thru-hole for a 1/4" screw.
Painted aluminum, stainless steel mounting screw. 1.3" spacing
between the "legs", 1.65" overall width.
Click on image to enlarge:
Scope and rings not included!
Prices include shipping in the USA!
