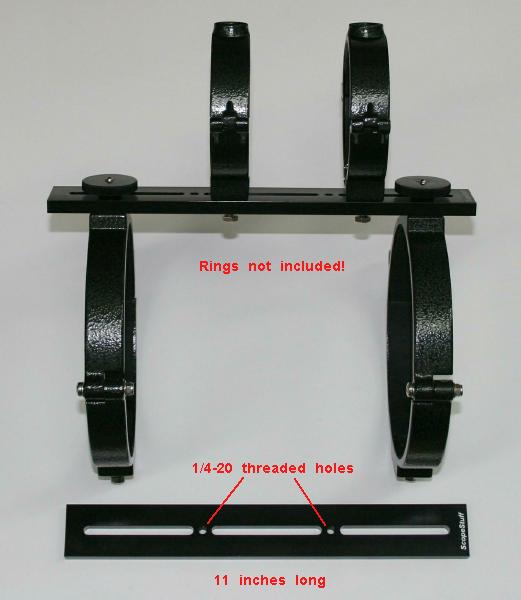

Ring and Accessory Mounting Bar
This solid aluminum bar makes mounting rings and other accessories easy.
The 11" long bar has three long slots that take 1/4-20 and M6 bolts, and two
1/4-20 threaded holes. The maximum ring spacing is 9.6 inches. (works for
LXD55/75 scopes)
Black anodized aluminum, 11" long, 1.45" wide, 0.350" thick, weighs 1/2 lb.
Rings not included, see below.
Optional stainless steel hardware kit has two 1/4-20x3/4" socket bolts, two
M6x20mm socket bolts, four flat washers, two 1/4-20x1" countersink phillips
ring bolts, two 1/4-20 nylock nuts, and two 1/4-20 thumb nuts.

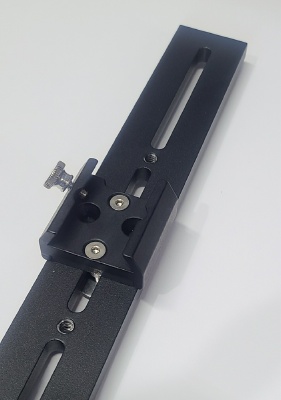

#RSBD Orion/Synta/Vixen style finder shoe can be positioned anywhere in
a #RSB1 slot, with hardware for mounting on RSB1 bar (picture below)
Click on image to enlarge:
Prices include shipping in the USA!
Ordering Information
#RSBD Finder shoe on RSB1 bar, mounts in slots:
Mounting Rings are Here!
